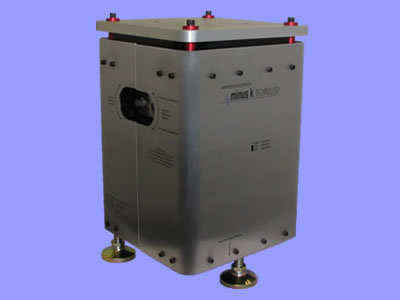

SM-1低频减震器
Low frequency vibration isolator for weightloads from 500 to 4200 lbs. and 1/2 Hz performance vertical and horizontal.
The SM-1 negative-stiffness isolator is thebasic building block of the FP-1 Floor Platform and other heavy multiple isolatorsystems. They require no air or electricity.
This isolator has the same basic featuresof our all passive, negative-stiffness, manually-adjustable bench topisolators. It offers our very-low frequency isolation performance for payloadsof many thousands of pounds.
The SM-1 isolator can be used alone or withany number of additional units to achieve higher capacity systems. They can bearranged in many geometrical configurations to suit your application.
If there is a need, the isolators can becustomized to achieve user specific needs. Eg., different horizontal andvertical frequencies, dampening, etc. They can also be made cleanroom andvacuum capatible.
The SM-1 isolators can also be placed onpedestals to increase the height of the isolation system.
Weight: Approximately 155 lb (70.3 kg) | |
Dimensions: | |
Approximate payload weight range: | |
Model | Payload Range* |
700SM-1 | 110 - 750 lb (50 - 340 kg) |
1200SM-1 | 675 - 1330 lb (315 - 603 kg) |
1500SM-1 | 800 - 1550 lb (363 - 703 kg) |
1900SM-1 | 1200 - 1950 lb (544 - 885 kg) |
2400SM-1 | 1800 - 2500 lb (817 - 1134 kg) |
2900SM-1 | 2400 - 3000 lb (1089 - 1361 kg) |
3400SM-1 | 2800 - 3600 lb (1270 - 1633 kg) |
4000SM-1 | 3400 - 4200 lb (1542 - 1905 kg) |
Performance | |
| |
Simple Set-Up and Adjustment | |
